STAGE 1 | 180KW

EVEREST 3.2L | STAGE 1 | 180KW

The Everest 3.2L Stage-1 upgrade starts with our trained technician setting your vehicle up on our 4WD dynamometer and performing a baseline dyno run. This allows us to firstly make sure everything is working A-OK and secondly it gives us standard figure from your car to compare to once the upgrade is completed. We then commence the upgrades by replacing the cold side intercooler pipe as the rubber hose leading up to the throttle body from the vehicle's intercooler is well known for its tendency to fail even on totally standard vehicles. The result is a Check Engine Light, a lack of power and black smoke out of the exhaust. We replace this with a high-quality silicone part and new heavy duty hose clamps – this is great insurance and a permanent solution to the problem. We then fit a Process West SEPR8R air oil separator to capture oil mist entering your engine's inlet manifold which can build up in your engine's intake.

We complete the package by custom tuning your vehicle's ECU on the dyno in real time utilizing the latest ECU tuning software to maximize power, torque and fuel efficiency and testing your vehicle on the road to make final adjustments, optimizing your vehicle's performance and driveability. At the end of this upgrade, we will provide you with a dyno graph comparing the before and after power & torque increase the upgrade has made to your vehicle.

Like all of our upgrade packages the Stage-1 package is modular in that it allows the customer to add to the package minimising the requirement to spend money twice when and if further upgrades are desired. We also always strive to bring you the maximum safe performance with high quality components while maintaining reliability and improving driveability.

Catch Can – Process West, Diesel - Internal combustion engines like the engine in your 4WD will in normal use have some combustion pressure leak past its piston rings. This pressure if not released, will build up inside the engine’s crankcase leading to engine oil leaks and a negative effect on engine power. To control this pressure build-up, the manufacturer has installed a vent on the top cover of your engine that plumbs this pressure into the inlet of your turbocharger, however that pressure takes with it vapour that contains an engine oil mist.

The heart of the Process West SEPR8R system is a uniquely designed Catch Can with an internal filtration system that scrubs the oil mist before plumbing the vapour back into the turbocharger. From the factory this 'air cleaning' doesn't take place, so the oil that comes out of the top engine cover ends up lining the insides of your intercooler and inlet system resulting in both reduced performance and economy over time.

• Manufactured from Billet Aluminium with removable lid and filtration assembly of 650ml capacity
• Over Pressure relief valve incorporated to prevent system malfunction in the case of blockage
• Drain port incorporated into main housing with optional drain valve available
• Unique metal matrix filtration system that is anti-clog and also washable/reusable with low restriction filtering
• Laser cut bracket specifically designed for each vehicle
• Moulded temperature resistance houses shaped for the engine bay of each vehicle
• High quality clamps and mounting hardware
• Installation instructions included
• A wide range of specific vehicle applications on offer for direct fitment

Diesel Tuning - For the most part, diesel 4×4’s are bought and employed to do a job, it may be towing, regularly carting heavy loads or used as daily transport with the odd trip off-road. Whatever is it, chances are that the vehicle may struggle to do that job in one area or another, maybe the vehicle struggles to pull the van or it uses too much fuel or it has annoying flat spots or a delay in the throttle response, no car is perfect. But by reprogramming the vehicles factory ECU, we can iron out those flat spots, increase the vehicle’s torque output and increase the general enjoyment of driving your diesel to get your car closer to perfect and help it to do the job you employed it to do.

We at HPF have a set of tuning guidelines in place that ensures we do not exceed predetermined SAFE air / fuel ratio & boost level parameters; in some cases, the air / fuel ratio is the same as standard. This guideline is in place to provide you with the safest and most reliable result and instead of chasing a maximum power figure, we tune your engine to these SAFE parameters and the increased power is a result of that and as each car is individually tuned on the dyno, the final outcome has been scrutinized and road tested prior to being returned to the customer.

Package Includes

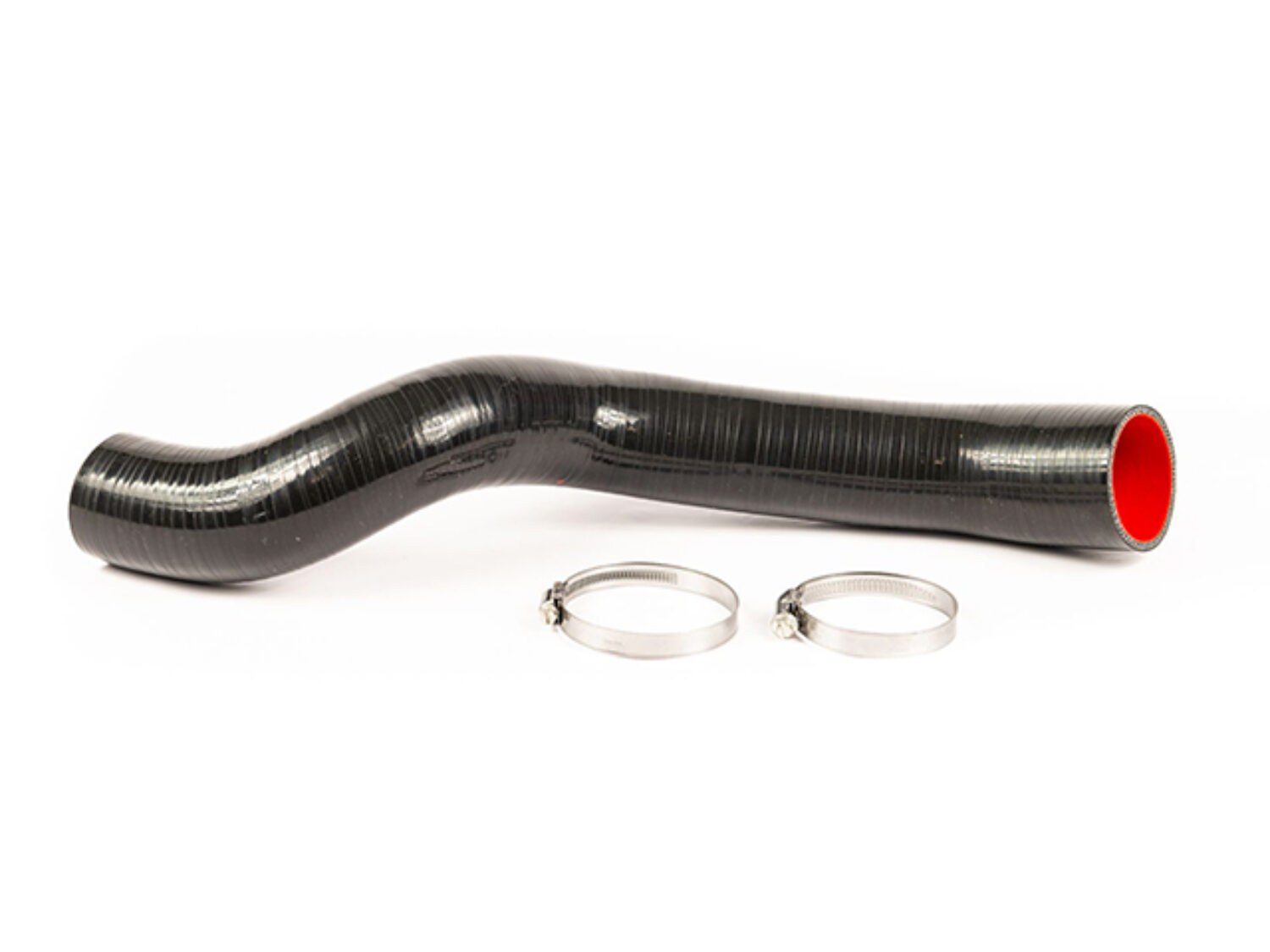

1 x Cold side silicone intercooler pipe
1 x SEPR8R air oil separator
1 x Custom ECU reprogram
1 x Before and after dyno graph
1 x Labour to fit, tune and test

Key Features

Stage 1 addresses reliability and engine longevity issues, while delivering you better throttle response with a noticeable increase in power and torque.

Notes

• Power figures listed are estimated kilowatts at the flywheel based on results typically obtained by HPF on HPF’s dynos. Typically these are based of a manual vehicle with standard driveline and standard wheels and tyres. Actual power can vary based on each specific vehicle.
• We advise against increasing the power output substantially on high kilometer engines, if your engine has in excessive of 150,000kms please contact us to discuss options.
• Whilst every attempt is made to ensure prices listed online are correct, they are subject to change at any time.
• Additional parts may be required in some cases depending on the condition of the vehicle. Cost of these parts and additional labor required may incur additional cost.
• Images are for illustration purposes only.
